ELECTRICALLY-INSULATING LODGEMENTS «IZOL-OZOM»

Intended for protection of pipelines, tanks and reservoirs against harmful impact of stray currents, reduction of cathodic protection current losses, prevention of galvanic and crevice corrosion as well as for protection of anti-corrosion coatings against mechanical damage.

Electrically-insulating lodgements «IZOL-OZOM» are polymeric gaskets made of a composition based on polymers, plasticizers, stabilizers and other additives.

VERSION TYPES OF THE ELECTRICALLY-INSULATING LODGEMENTS

Descriptions	Version type	Overall dimensions (length, width, thickness), mm	Application for support of pipelines dia., mm
Electrically-insulating lodgement «IZOL-OZOM»	1	175 х 160 х 4	up to 273
	2	350 х 160 х 6	from 273 to 530
	3	225 х 225 х 15	up to 1420, tanks, reservoirs
	4	100 х 105 х 15	from 530 to 1420
	½ 4	50 х 105 х 15
	5	100 х 55 х 15
	½ 5	50 х 55 х 15

APPLICATION

These articles are installed on supports of pipelines of various types in all climatic zones, climatic version types UHL и HL, placement category 1 as per State Standard 15150-69. Ambient temperature is from –60 °C до +60 °C, heat resistance of the articles up to +110 °C.

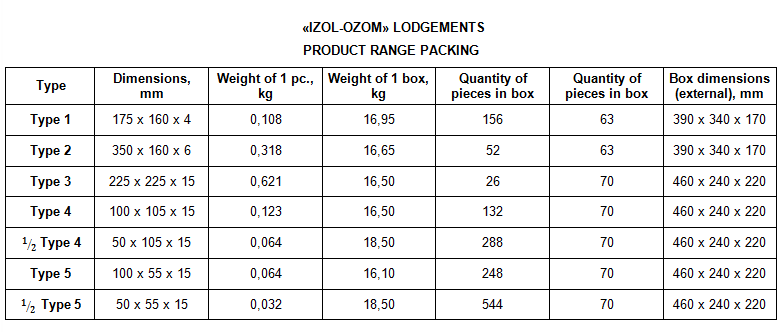

PRODUCT RANGE-PACKING

Familiarize with the document

OUR CLIENTS

Roll size and diameter	Number of rolls in box, pc.	Roll weight, g	Box weight, kg
PVC Insulating Tape Spooling On A Plastic Bush By Weight
PVC insulating tape by weight 75x20 blue	208	≈90	≈19
PVC insulating tape by weight 75x20 black	208	≈90	≈19
Cotton Insulating Tape Spooling On A Plastic Bush By Weight
Cotton insulating tape by weight 120x18 black	99	≈180	≈18
PVC Insulating Tape Spooling On A Plastic Bush By Pieces
PVC insulating tape 65x15 blue	300	40-43	≈12
PVC insulating tape 65x15 black	300	40-43	≈12
PVC insulating tape 70x18 blue	208	70-80	≈13,5
PVC insulating tape 70x18 black	208	70-80	≈13,5
PVC insulating tape 80x18 blue	156	80-90	≈13,5
PVC insulating tape 80x18 black	156	80-90	≈13,5
PVC Insulating Tape Spooling On A Cardboard Bush By Pieces
PVC insulating tape 10mx15 blue	240	40-43	≈10
PVC insulating tape 10mx15 black	240	40-43	≈10
PVC insulating tape 10mx15 grey	240	40-43	≈10
PVC insulating tape 20mx18 blue	156	90-100	≈15
PVC insulating tape 20mx18 black	156	90-100	≈15
PVC insulating tape 20mx18 grey	156	90-100	≈15
